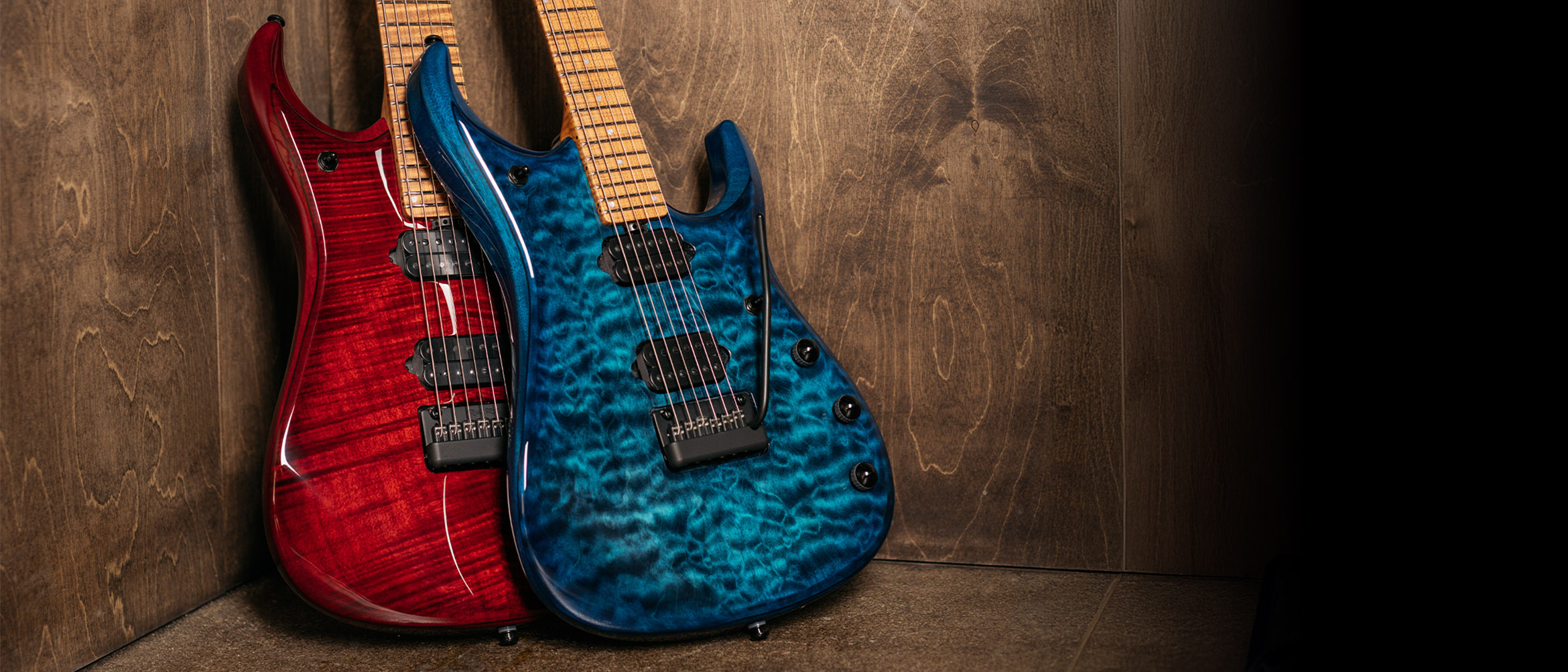

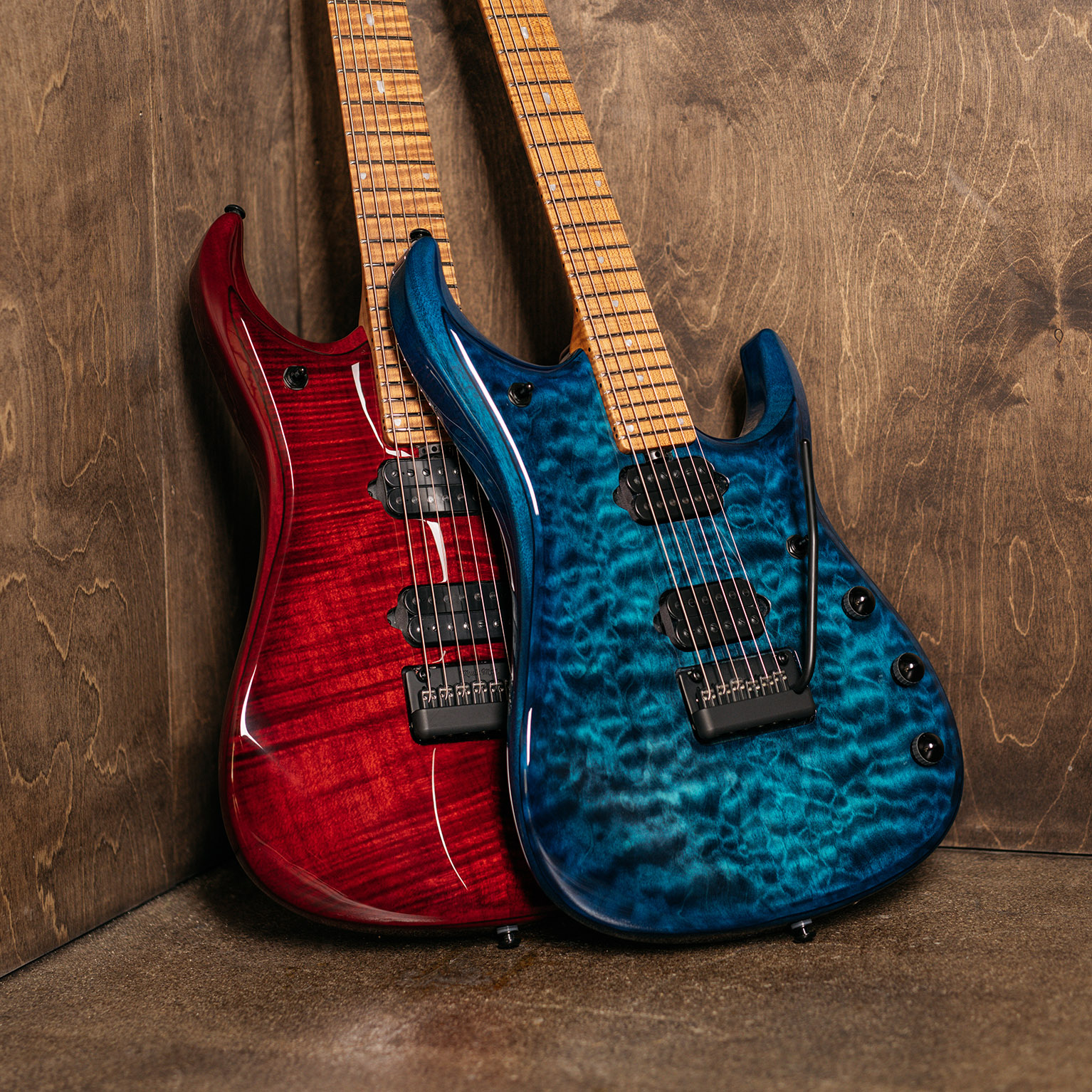

JP15 Hero Image
JP15 Logo

CUSTOM OPTIONS

Teal Quilt

Teal Flame

Sahara Burst Quilt

Sahara Burst Flame

Flame Trans Black Burst

Quilt Trans Black Burst

Your Custom Options:

Model:
Color:
Neck:
Pickguard:
Hardware:

Build Code
000-00-00-00

JP15 Highlights

JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Slide
JP15 Highlight

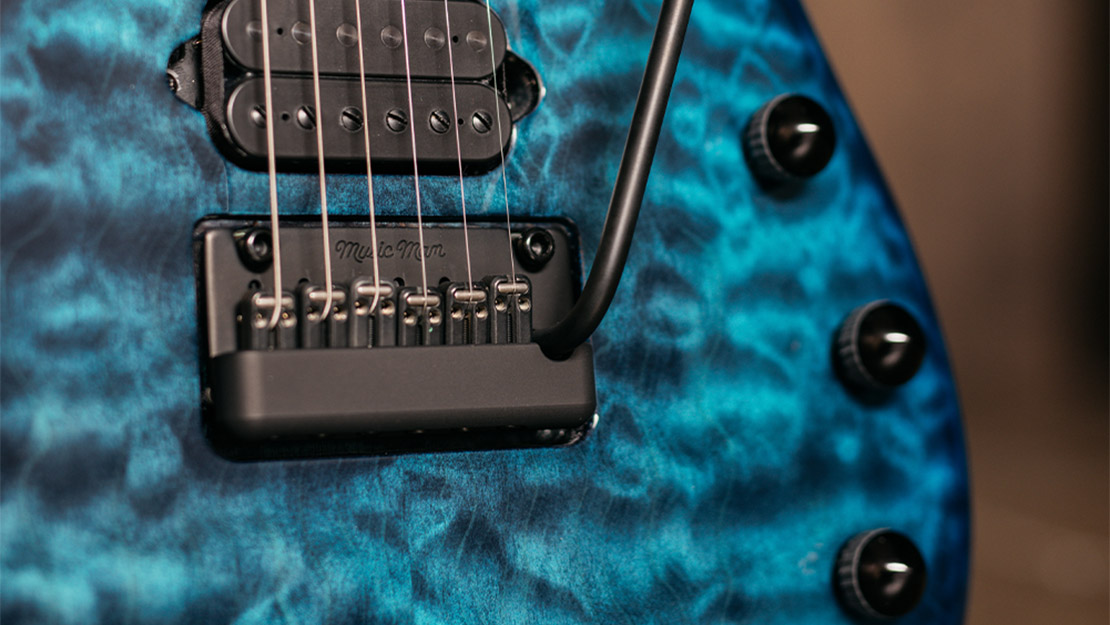

Floating JP Tremolo w/piezo saddles
JP15 Highlight
adjustable trim pots
JP15 Highlight
20 dB Gain Boost Volume Knob

Specifications, Schematics & More

Specifications
Model JP15 6
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Weight 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood African mahogany with maple top (roasted maple top on Sahara Burst)
Body Finish Matte Polyester - Sahara Burst & Trans Black Burst; High Gloss Polyester - Teal
Body Colors Sahara Burst, Teal, Trans Black Burst
Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated (matte black on trans black burst), hardened steel with stainless steel saddles.
Scale Length 25-1/2" (64.8 cm)
Neck Radius 17" (43.2 cm)

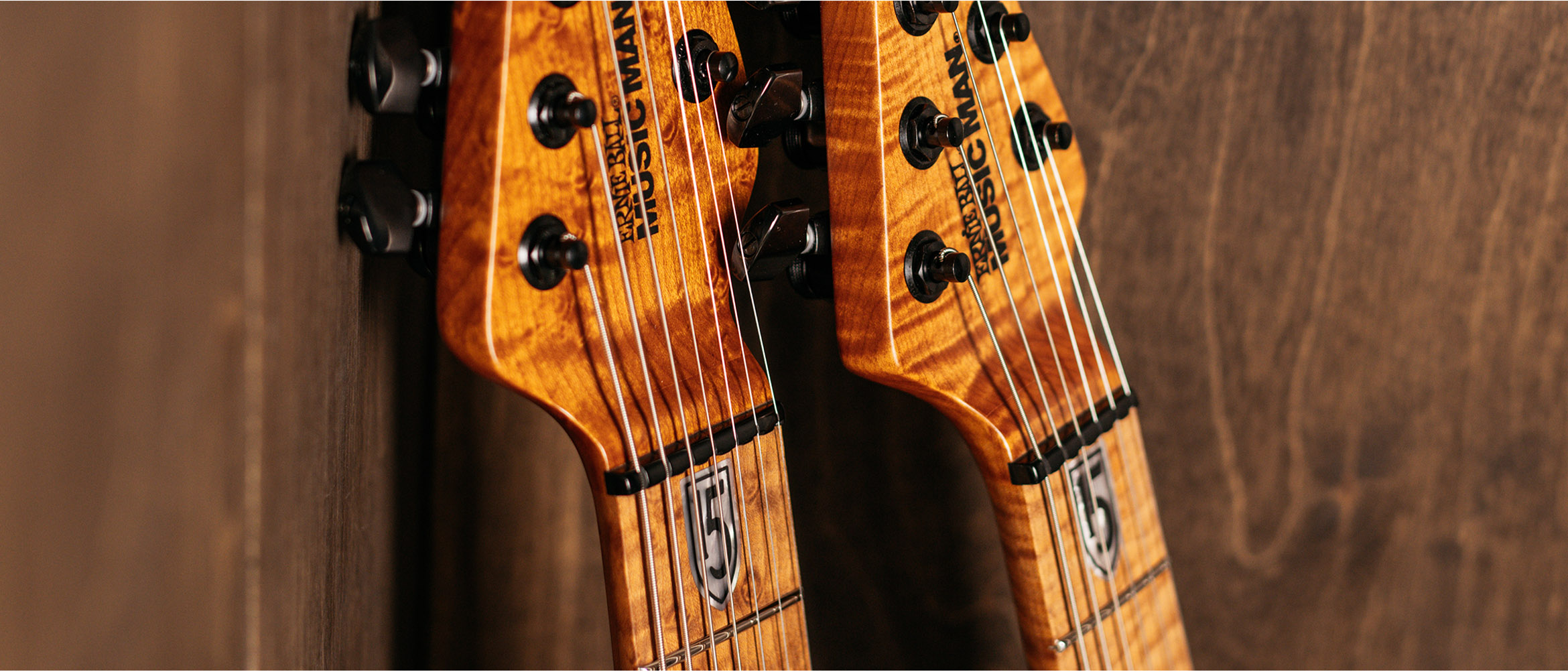

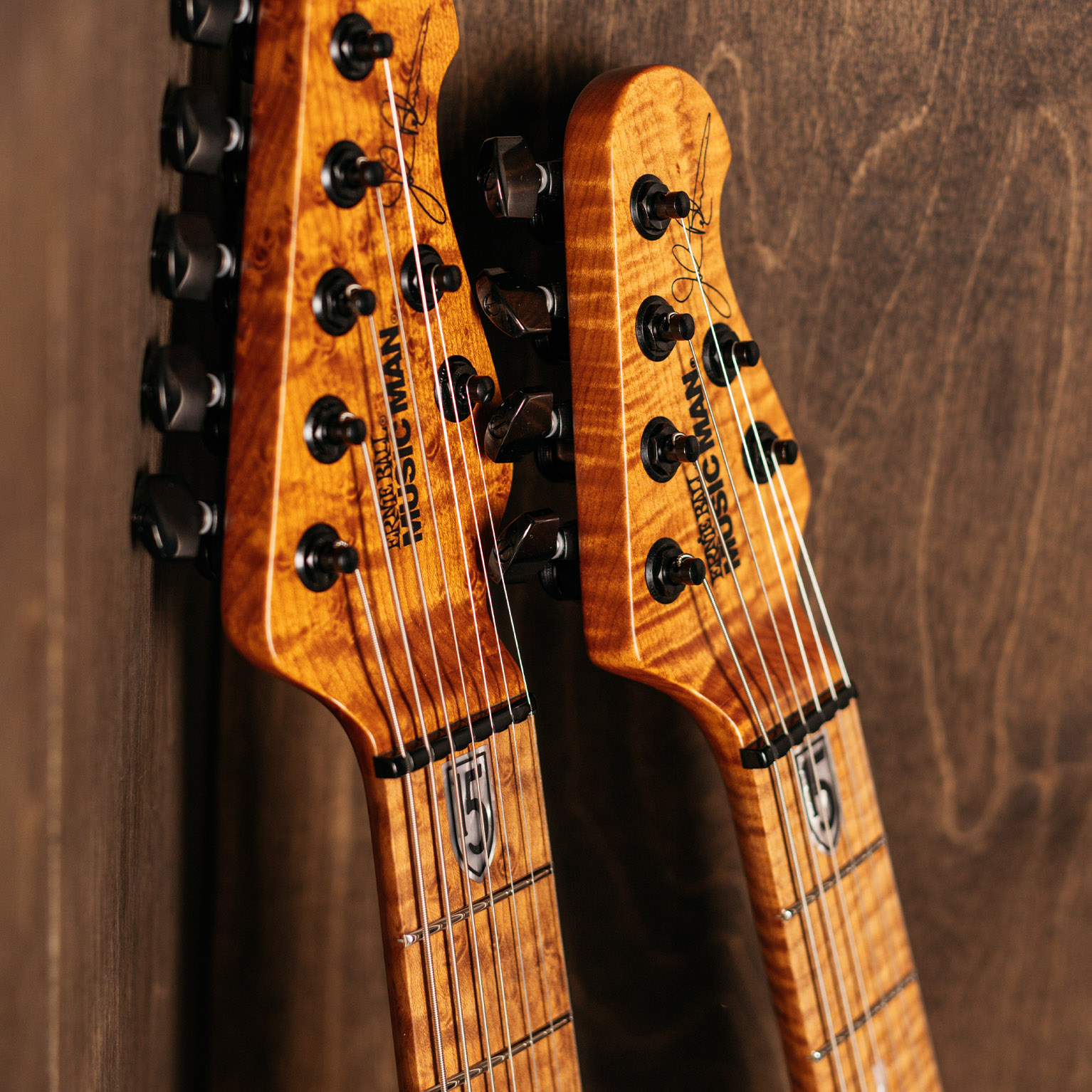

Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - Medium Jumbo profile, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret

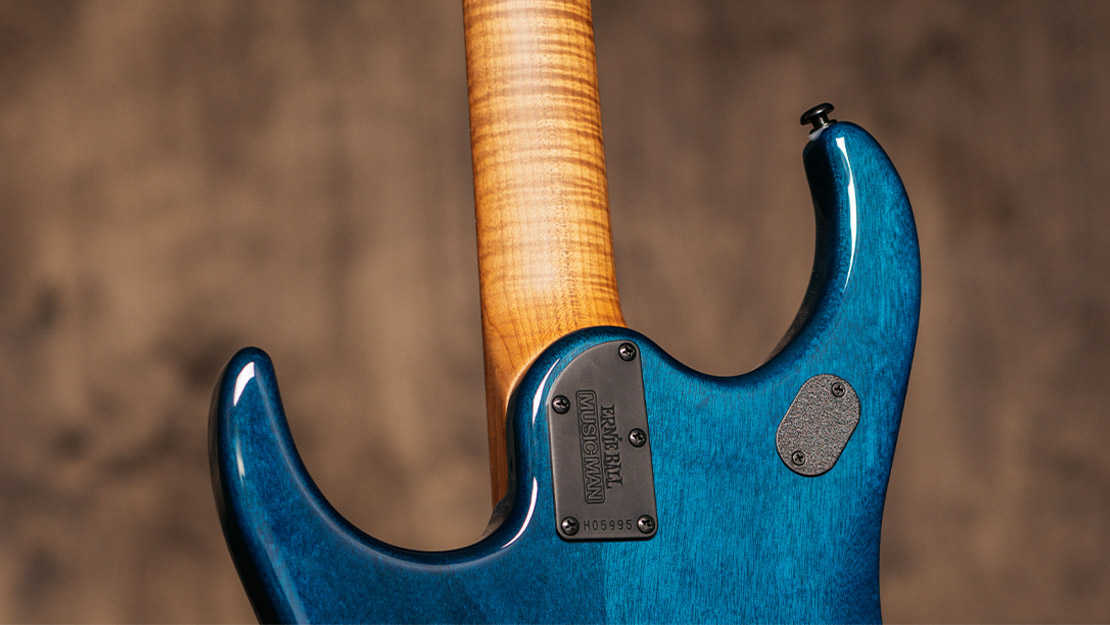

Neck Wood Select roasted maple neck
Fingerboard Select roasted maple neck
Fret Markers Custom JP15 Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend
Tuning Machines Schaller M6-IND locking with pearl buttons (black buttons on trans black burst)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector

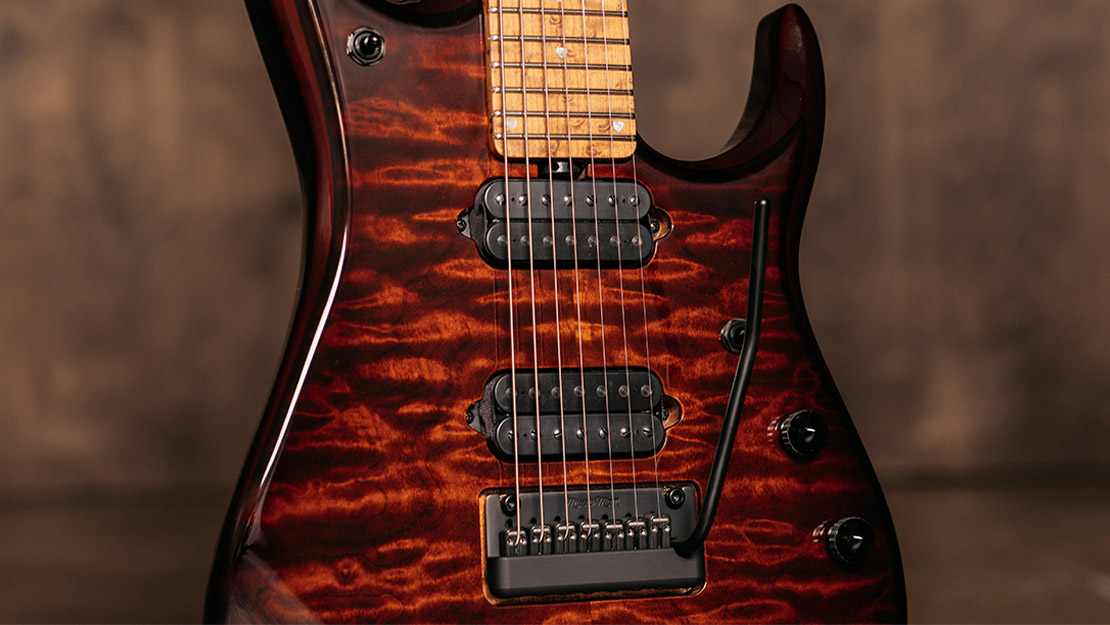

Pickups HH - DiMarzio Illuminators; Piezo bridge pickup
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)

id => 30

iid => 30

enabled => 1

header_1 =>

header_2 =>

wiring_image => 0

created_at => 2015-11-06 08:20:41

updated_at => 2015-11-06 08:20:41

Specifications
Model JP15 6
Order 0
Size 12-3/8" wide, 1-3/4" thick, 37" long (31.4 cm wide, 4.5 cm thick, 94.0 cm long)
Weight 7 lbs, 4 oz (3.29 kg) - varies slightly
Body Wood African mahogany with maple top (roasted maple top on Sahara Burst)
Body Finish Matte Polyester - Sahara Burst & Trans Black Burst; High Gloss Polyester - Teal
Body Colors Sahara Burst, Teal, Trans Black Burst
Body Bindings
Bridge Custom John Petrucci Music Man® Piezo floating tremolo, made of chrome plated (matte black on trans black burst), hardened steel with stainless steel saddles.
Pickguard
Scale Length 25-1/2" (64.8 cm)
Neck Radius 17" (43.2 cm)
Headstock Size Only 5-7/8" (14.9 cm) long
Frets 24 - Medium Jumbo profile, Stainless Steel
Neck Width 1-11/16" (43.0 mm) at nut, 2-1/4" (57.2 mm) at last fret
Neck Wood Select roasted maple neck
Fingerboard Select roasted maple neck
Fret Markers Custom JP15 Inlays
Neck Finish Gunstock oil and hand-rubbed special wax blend
Neck Colors
Neck Binding
Tuning Machines Schaller M6-IND locking with pearl buttons (black buttons on trans black burst)
Truss Rod Adjustable - no component or string removal
Neck Attachment 5 bolts - perfect alignment with no shifting; Sculpted neck joint allows smooth access to higher frets
Electronic Shielding Graphite acrylic resin coated body cavity and aluminum control cover
Controls Custom Music Man® active preamp; push/push volume for gain boost, 500kohm push/push passive tone for custom 2 pickup configurations - .022µF tone capacitor
Switching 3-way toggle pickup selector, with custom center position configuration; 3-way toggle piezo/magnetic selector
Pickups HH - DiMarzio Illuminators; Piezo bridge pickup
Left Handed No
Strings 10p-13p-17p-26-36-46 (RPS 10 Slinkys #2240)
